Vietnam Plywood

1/29/2015

UPDATE SOME PICTURE OF PLYWOOD

Best Regards

Mr.Tung

THUY LINH PLYWOOD PRODUCTION AND EXPORT CO., LTD

No. 12 Lane 2, Doi Nhan Street, Vinh Phuc Ward, Ba Dinh District, Hanoi City, Vietnam

Tel: +84 4 6682 7331

Mobile: +84 1664 528 331

Email: thuylinhplyex@gmail.com

Skype: Takayamajin1

WHAT IS PLYWOOD ?

Plywood is a composite of wood veneer, glue and water. Thin sheets of wood veneer are glued together to make plywood with flexible, inexpensive, workable and re-usable.

Softwood ply is used in construction such as walls, roofs and floors.

Hardwood ply is used in furniture such as floors, kitchen units and some furniture.

Plywood is divided into 3 main kinds

Packing plywood
Furniture plywood
Construction plywood
The production process of plywood:

A log is softened with steam and then mounted on a lathe
A thin layer of wood is peeled off in a continuous veneer sheet.
Several layers of veneer are glued together alternating between the different layers.
The stack is heated and pressed to form a rigid panel.
Glue:

According to the usage purpose, the plywood is used indoors or outdoors that manufacturers use MR or WBP glue.

Plywood for indoor uses the less expensive urea-formaldehydeMR glue, which has limited water resistance
Outdoor and marine-grade plywood are designed to withstand rot, and use a water resistant phenol-formaldehyde glue to prevent delamination and to retain strength in high moisture.
Grade:

A
Face and back free from all defects.
A/B
Face veneers free from all defects. Reverse veneers with only a few small knots or discolorations.
B
Both side veneers with only a few small knots, not smooth.
BB
Both sides permitting jointed veneers, large knots, plugs, etc.
BB/CC
Little knots, no decay, wormholes or tear mended skillfully.
GradeA

gradeB

Best Regards

Mr.Tung

THUY LINH PLYWOOD PRODUCTION AND EXPORT CO., LTD

No. 12 Lane 2, Doi Nhan Street, Vinh Phuc Ward, Ba Dinh District, Hanoi City, Vietnam

Tel: +84 4 6682 7331

Mobile: +84 1664 528 331

Email: thuylinhplyex@gmail.com

Skype: Takayamajin1

7/31/2014

CURRENTLY WE MAJOR

Our plywood

Face: white face veneer (canarium, ormosia, styrax), imported face veneer (keruing and red veneer)
Back: Vietnam local veneer
Core: mixed acacia and styrax
Glue: MR
Grade: AB and BC

Dimension: 3mm, 5mm, 8mm, 10mm, 13mm, 15mm, 18mm x 1220mm x 2440mm or other thickness required by the buyer.

Packing: pallet packing

Estimated loading quantity: 45 ~ 48m3/1cont 40'HC

Payment: by L/C at sight

Delivery: 2 or 3 week after receiving your L/C

Capacity: 10 conts 40'HC per month.

Please send me your inquiry in detail and destination port!

Email: thuylinhplyex@gmail.com

7/04/2014

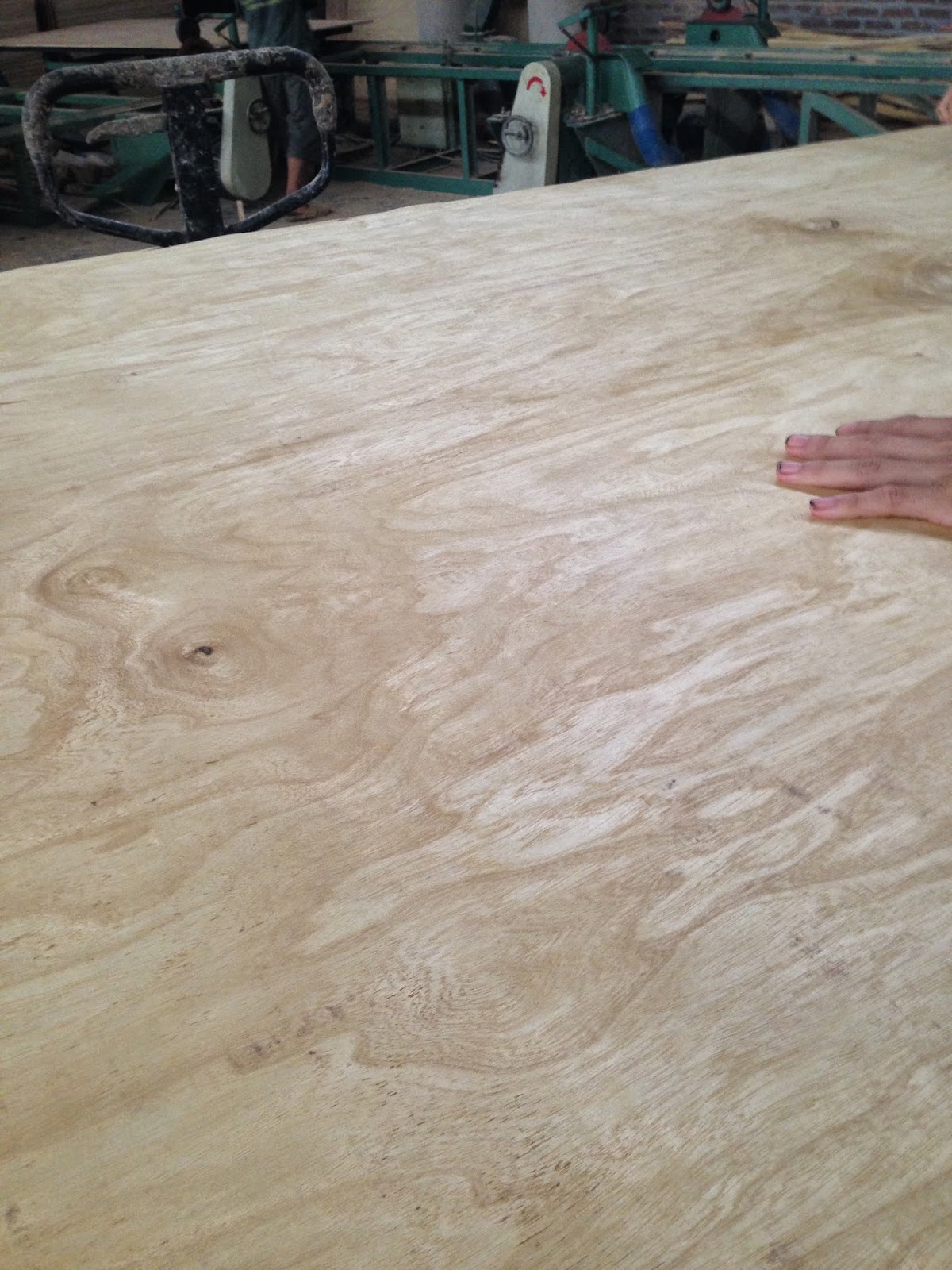

PLYWOOD GRADE BC

Some picture about Plywood grade BC

7/03/2014

Plywood

Plywood is a manufactured wood panel from the family of manufactured boards (such as medium-density fibreboard (MDF),particle board (chipboard), etc.) made from thin sheets of wood veneer. Plywood layers (called veneers or plies) are glued together, with adjacent plies having their wood grain rotated relative to adjacent layers up to 90 degrees.

All plywoods bind resin and wood fiber sheets (cellulose cells are long, strong and thin) to form a composite material. This alternation of the grain is called cross-graining and has several important benefits: it reduces the tendency of wood to split when nailed at the edges; it reduces expansion and shrinkage, providing improved dimensional stability; and it makes the strength of the panel consistent across all directions. There is usually an odd number of plies, so that the sheet is balanced—this reduces warping. Because plywood is bonded with grains running against one another and with an odd number of composite parts, it is very hard to bend it perpendicular to the grain direction of the surface ply.

Grades of Plywood

As you have understood from the above paragraph, A, B, C, D are grades of plywood commonly used. When you have a look at the plywood, you will find the letter grades are printed in pairs. These plywood grades explained here, will help you understand their hidden meaning. This means, if one side is printed with A and the other side with C, it indicates that the plywood has a well finished front side and a slightly unfinished back side. Construction grade plywood is graded as C-D and called CDX plywood. The best way to explain grades of plywood is by understanding the types of plywood. Let us have a look at the four basic types of plywood.

Marking of Grades

Plywood is generally available in 4'x8' sheet and is cut into a square board. The thickness of plywood normally used is 1/8", 1/4", 1/2", and 3/4". The 1/8" and 1/4" plywood is used for making hard covered flats. 1/2" plywood is used for building furniture parts, boxes and props. It is lighter as well as cheaper than 3/4" plywood. Lastly, 3/4" plywood is used to make covering platforms as it is very strong type of plywood.
